T&B® LB27CG-TB

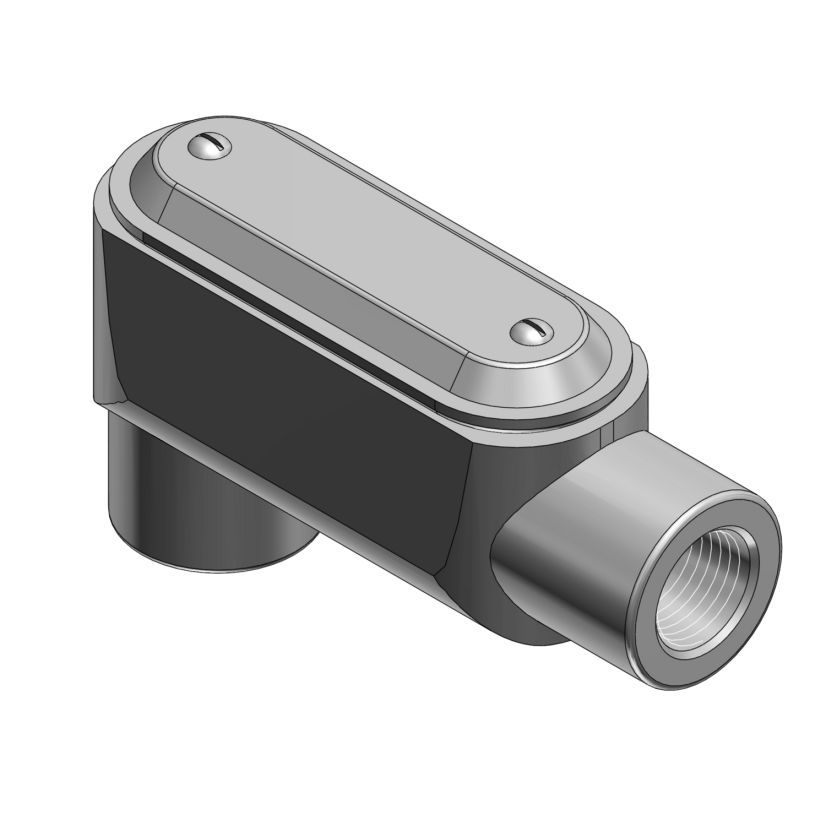

T&B BlueKote LB27CG-TB Type LB Pre-Assembled Conduit Body With Cover, Gasket, 3/4 in Hub, Form 7 Form, 6.6 cu-in Capacity, Gray Iron, Epoxy Powder Coated/Zinc Plated
T&B® LB27CG-TB
T&B BlueKote LB27CG-TB Type LB Pre-Assembled Conduit Body With Cover, Gasket, 3/4 in Hub, Form 7 Form, 6.6 cu-in Capacity, Gray Iron, Epoxy Powder Coated/Zinc PlatedNon-stock product. Available to order - lead time may vary.
BrandT&B®
MFG #LB27CG-TB
Werner Part #1582516
UPC786210916682
Non-stock product. Available to order - lead time may vary.
BrandT&B®
MFG #LB27CG-TB
Werner Part #1582516
UPC786210916682
Product Description
T&B BlueKote Conduit Body, Type LB Pre-Assembled, 3/4 in Hub, 2 Hubs, 6.6 cu-in Capacity, Form 7, Tapered NPT, Gray Iron, Epoxy Powder Coated/Zinc Plated, 5.25 in L x 1.65 in W x 2.4 in H
Attributes
Documents
Applications
Features
Attributes
Capacity6.6 cu-in
Connection TypeTapered NPT
Country of OriginCN
Dimensions5.25 in L x 1.65 in W x 2.4 in H
FinishEpoxy Powder Coated/Zinc Plated
FormForm 7
Hub Size3/4 in
ManufacturerABB
MaterialGray Iron
Number of Hubs2
Size3/4 in
TypeType LB Pre-Assembled
Type / StyleType LB Pre-Assembled
Documents
Applications
For connect sections, act as pull outlets when conductors are being installed and provide easy access for splices in branch conductors
Features
- Bluekote teflon based internal finish provides a slick, easy glide internal surface which significantly lowers the amount of force necessary to pull wires
- Eliminates rough internal surfaces that can cut into cable jacket, insulation and conductors during pulling and also reduces installation time and risk of installer strain
- Triple layer protection including two layers of epoxy coating which stops corrosion in its tracks
- Bodies are designed with a flat back, allowing more cubic inch capacity
- Conduit bodies make 90 deg bends in conduit runs, act as mounting outlets for wiring devices and lighting fixtures and to provide access to conductors for maintenance and future system changes
- Connect conduit sections
- Act as pull outlets when conductors are being installed and provide easy access for splices in branch conductors
